MEATEST<br>M133C
MEATEST<br>M133C - Imagen 2

MEATEST
M133C

Calibrador trifásico de Potencia y Energia ,0.04% , 100ppm, 750V, 2A

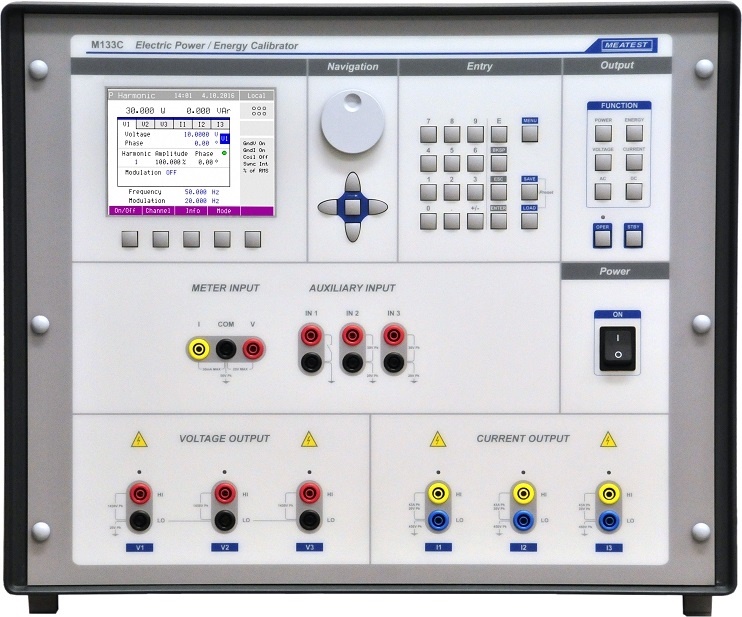

Compact three-phase electric power/energy calibrator for calibration and testing of power meters, power transducers, electrometers and power quality analysers.

Accuracy: 0.04 %

Features

  • Voltage “phase-neutral” 1 V to 280 Vdc / 300 mA, 1 V to 600 Vac
  • AC voltage “phase – phase” 2 V to 1200 V
  • DC/AC current 8 mA to 30 A / 5 V
  • DC/AC current 90 A in one phase configuration
  • Power factor setting -1 to +1
  • Floating current outputs to 450 Vpk
  • Harmonic, interharmonic distortion, modulation
  • Frequency range 15 Hz to 1 kHz
  • Simulated electric power to 54 kVA (1.35 MVA with option 151-25)
  • Built-in process multimeter
  • GPIB & RS232 interface



Categoría: Etiqueta:

Descripción

[vc_row][vc_column][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=».vc_custom_1432753263044{border-bottom-width: 4px !important;padding-top: 10px !important;padding-bottom: 10px !important;border-bottom-color: #568ac3 !important;border-bottom-style: solid !important;}»]

Solicita presupuesto

[/vc_column_text][vc_column_text css=».vc_custom_1433786660078{padding-top: 10px !important;}»]

[simple_tooltip content=’This is the content for the tooltip bubble’]Alquiler[/simple_tooltip][simple_tooltip content=’This is the content for the tooltip bubble’]Formación[/simple_tooltip][simple_tooltip content=’This is the content for the tooltip bubble’]Calibración Opcional[/simple_tooltip]

[/vc_column_text][vc_column_text css=».vc_custom_1462875737248{padding-top: 10px !important;}»]

Documentación



[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=»1/4″ animation=»»][vc_column_text]

Hoja de datos

SIMBOLO-PDF[/vc_column_text][/vc_column][vc_column width=»1/4″ animation=»»][vc_column_text]
[/vc_column_text][/vc_column][vc_column width=»1/4″ animation=»»][vc_column_text]
[/vc_column_text][/vc_column][vc_column width=»1/4″ animation=»»][vc_column_text]
[/vc_column_text][/vc_column][/vc_row]
