PEAKTECH<br>4145-1000A

PEAKTECH
4145-1000A

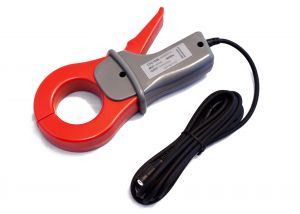

1000A AC Current Clamp Adapter with BNC Plug

Professional measuring transducer that allows accurate measurements of high currents up to 1000 A AC in conjunction with a measuring device with BNC connection. The large opening of the round measuring tongs with handle for one-hand operation and the high cable length allow measurements even at large conductor diameters at more distant measuring locations. This current clamp adapter is ideally suited as an accessory for power meters, power analyzers and oscilloscopes.

  • Also suitable as an accessory for the PeakTech 4145 power analyzer
  • For cunductor diameters of max. 52mm
  • Cable length: approx. 290cm
  • Power conversion: 1mV / A
  • Accuracy class: IEC 60044-1 @ 1%
ACA 0,5 … 1000 A AC
ACA-Frequency 50/60 Hz nominal (40 … 1 kHz max.)
Accuracy +/- 1% (48-65Hz / 25°C+/-3°C)
Burden Resistance < 10Ω
Max. non-destructive current 2000 A
Safety CAT III 600V
Dimensions (WxHxD) 110 x 215 x 45 mm
Weight ca. 700 g
EAN-13 4250569404092
