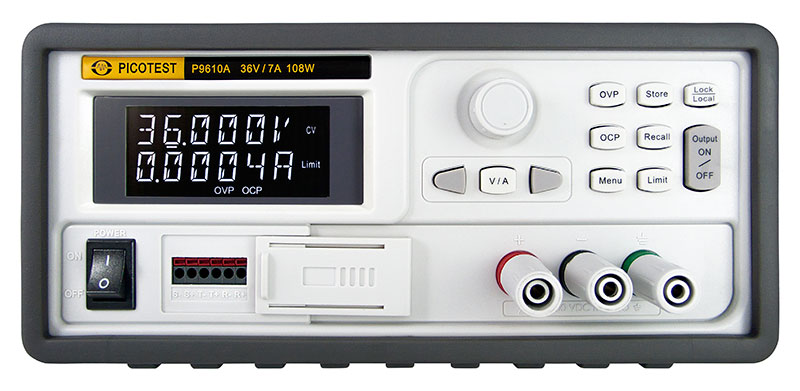

PICOTEST<br>P9610A

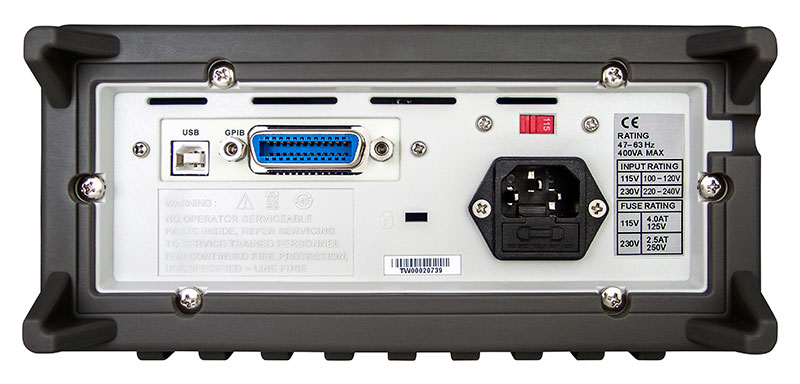

PICOTEST<br>P9610A - Imagen 2

PICOTEST
P9610A

Fuente de Alimentación, 36V/7A108W, Programable, auto -rango

  • Highest Quality Yet Competitively Priced
  • Continuous Autoranging
  • Better Transient Response
  • Low noise – 35% less than competitors
  • Optical controls – Don’t get dirty or wear out
  • Programmed Power Sequencing Capability
  • More Features:
    • Single output – Two Models
    • P9610A 108W (36V/7A), P9611A 150W (60V/6A)
    • Excellent Load and Line Regulation
      • < 0.01% + 2mV Voltage change for any load change
      • < 0.01% + 250uA Current change load for any load change
    • Very fast transient response times (<30us – P9610A/<50ms P9611A)
    • Very fast settling times (<40ms – P9610A/<50ms P9611A)
    • Constant voltage, constant current, programmed sequencing
    • High accuracy and resolution
      • Voltage 0.05% + 10mV (Output + offset)
      • Current 0.2% + 10mA (Output + offset)
    • Low ripple & noise
    • GPIB and USB Connections optional
    • Programming Compatible with the Keysight E3632A
    • No Shorting Bar Necessary
    • Remote sense, Master -Slave Operation (P9610A only)
    • Three-year warranty
  • Lightweight < 2.5kgs (5.5 lbs) and Stackable
Categoría: Etiqueta:
