PONOVO
PCT 200AI

Ensayo de Transformadores de  medida

  • Can test M/P/PT type, bushing and GIS type CT
  • Ratio check up to 30000:1 and 45000:5

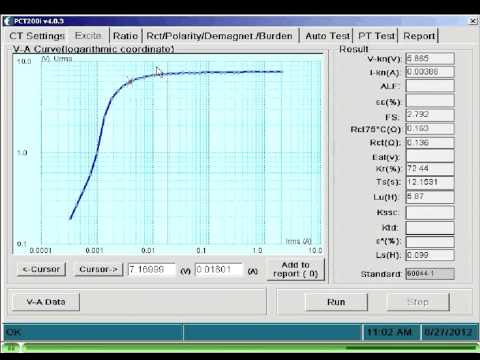

  • Knee point check up to 40000V
  • Results saved directly into Excel format
  • Dimensions: h.470mm w.200mm d.245mm, Weight: 11kg

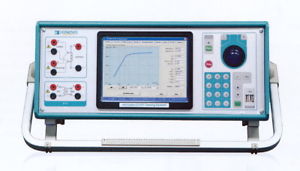

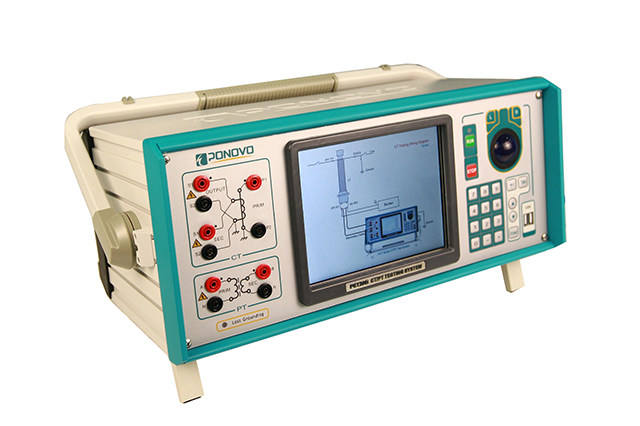

The Ponovo PCT200Ai CT/PT Test System is a new style of current transformer (CT) and power transformer (PT) high accuracy testing equipment.

Using low frequency/variable frequency methods, the PCT200Ai is able to very rapidly test a large number of CT€™s

The PCT200ai has an on board windows xp PC which can be operated ether by the on board track ball or a keyboard and mouse can be plugged in to the USB socket.

All reports are stored in time stamped directories and multiple reports can be very easily created from the directory with just a couple of clicks saving a huge amount of time.

The PCT 200ai can test a knee point up to 40KV and test CT Ratio€™s up to 35000 to 1 45000to 5
