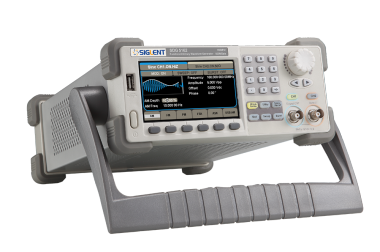

SIGLENT<br />SDG5162

SIGLENT
SDG5162



Generador Arbitrario BF 160MHz, 2 canales

Model types:

Model

SDG5162

SDG5122

SDG5082

Maximum output frequency

160MHz

120MHz

80MHz

Output channels

2

Sampling rate

500MSa/s

Wave length

CH1:16Kpts,CH2:512Kpts

Frequency resolution

1μHz

Vertical resolution

14bit
Waveform

Sine, Square, Ramp, Pulse, Gaussian white noise, Arb

Modulation function

AM,DSB-AM, FM, PM, FSK, ASK,PWM, Sweep, Burst



Amplitude

 CH1/CH2≤40MHz: 1mVpp~10Vpp(50Ω), 2mVpp~20Vpp(high impedance)

40MHz~100MHz:  1mVpp~5Vpp(50Ω), 2mVpp~10Vpp(high impedance)

100MHz~130MHz:  1mVpp~2.5Vpp(50Ω),2mVpp~5Vpp(high impedance)

130MHz~160MHz:  1mVpp~1.5Vpp(50Ω),2mVpp~3Vpp(high impedance)



Frequency counter

Frequency range: 100 mHz ~ 200 MHz

Interface

USB Host, USB Device

Optional interface

LAN,GPIB(IEEE-488)

Dimension

261mm*104.85mm*343.8mm
More info in the factory 《SDG5000 Datasheet》

Accessoires Included:

Siglent SDG5162 Arbitrary Function Generator
User Manual
Guarantee Card
CD (including EasyWave 1.0 computer software system)
Power Cord
USB Cable
Quick Start Guide
